创建项目

创建父工程

打开

idea

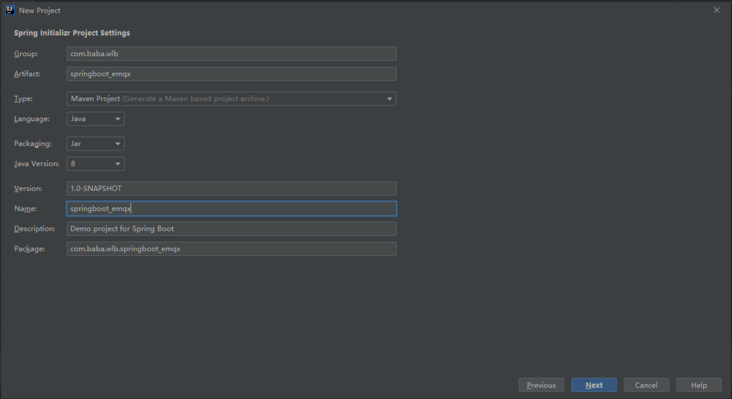

点击 File>New>Project 选择Spring Initializr >JDK版本>Next 并按下图创建项目

点击

next

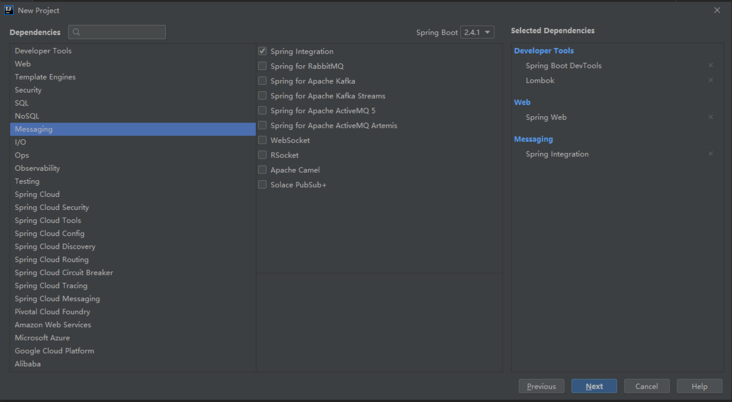

,开发者工具

Developer Tools

我们勾选前两个，

Web

我们勾选第一个，安全框架和SQL这里暂时不需要勾选，Messaging中间件,我们同样勾选第一个就好，Cloud组件我们也不用勾选。

依次点击

next

finish

创建好项目

删除

src

,

.gitignore

,

HELP.md

,

mvnw

和

mvnw.cmd

目录，本文采用Gateway绑定的方式,需要引入以下依赖：

org.springframework.integrationspring-integration-streamorg.springframework.integrationspring-integration-mqtt

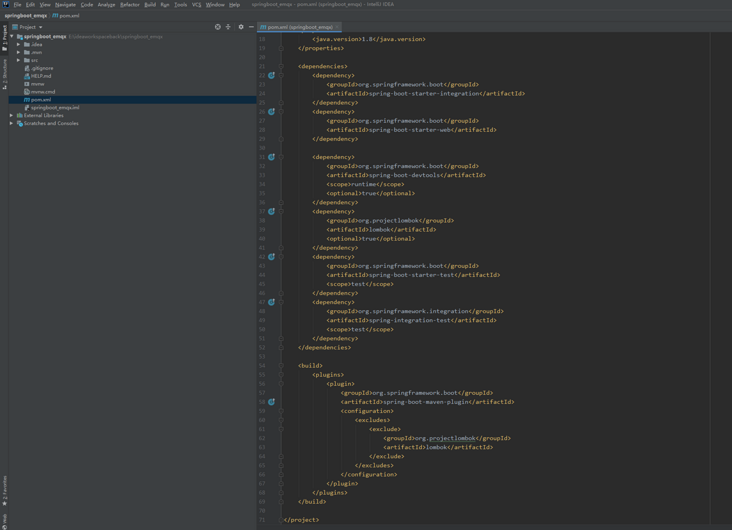

父工程pom文件：

4.0.0pomspringboot_emqx_commonspringboot_emqx_publishspringboot_emqx_subscribeorg.springframework.bootspring-boot-starter-parent2.4.1com.baba.wlbspringboot_emqx1.0-SNAPSHOTspringboot_emqxDemo project for Spring Boot1.8org.springframework.bootspring-boot-starter-integrationorg.springframework.integrationspring-integration-streamorg.springframework.integrationspring-integration-mqttorg.springframework.bootspring-boot-starter-weborg.springframework.bootspring-boot-devtoolsruntimetrueorg.projectlomboklomboktrueorg.springframework.bootspring-boot-starter-testtestorg.springframework.integrationspring-integration-testtestorg.springframework.bootspring-boot-maven-plugincom.baba.wlb.publish.PublishApplication

创建子工程

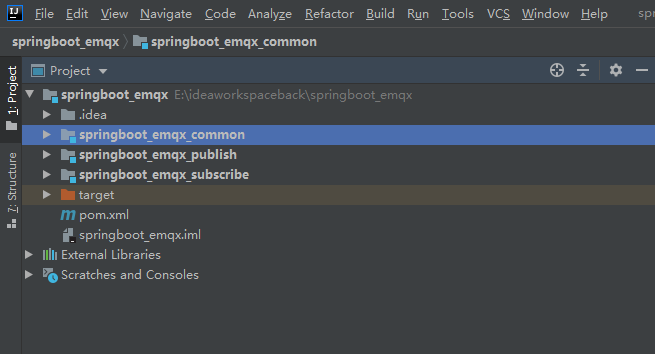

在父工程中点击New>>module>Next 分别创建三个子工程：

springboot_emqx_common

springboot_emqx_publish

springboot_emqx_subscribe

springboot_emqx_common

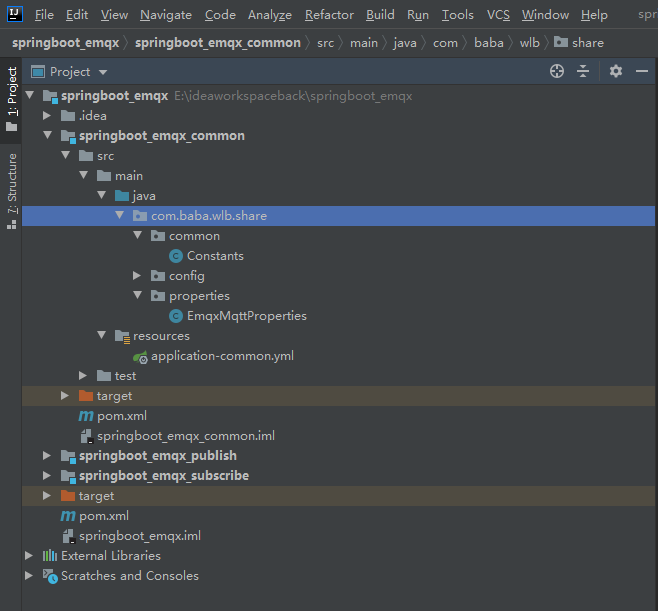

在该模块下新建如下package包

注：(config包下暂时没放公共配置，因为我试过好久，发现丢进来的配置只有主类'mainClass'才能加载到，其他模块加载不到通用配置，不清楚是不是我漏了什么注解，望了解这部分的人多多指教！所以只好拆分配置到各个模块中了)

系统常量：

Constants.java

package com.baba.wlb.share.common;

/**
 * @Author wulongbo
 * @Date 2020/12/29 13:50
 * @Version 1.0
 */

/**
 * 系统常量
 */
public class Constants {

    public static final String MQTT_PUBLISH_CHANNEL = "mqttPublishChannel";
    public static final String MQTT_SUBSCRIBE_CHANNEL = "mqttSubscribeChannel";

}

Emqx配置类：

EmqxMqttProperties.java

package com.baba.wlb.share.properties;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

/**
 * @Author wulongbo
 * @Date 2020/12/29 11:33
 * @Version 1.0
 */

/**
 * 配置文件
 */

@Data
@Component
@ConfigurationProperties("wulongbo.mqtt.emqx")
public class EmqxMqttProperties {
    private String username;
    private String password;
    private String hostUrl;
    private String clientId;
    private String defaultTopic;
    private Integer timeout;
    private Integer keepAlive;
    private Integer qos;
    private Integer version;
}

在

resource

资源目录下新建一个

application-common.yml

的yml文件。

注：方法一：以application-*.yml的形式命名。 方法二：模块之间并不用写依赖配置，直接在common模块的resource目录，添加一个config文件夹，在里面创建application.yml文件即可

官网是这么介绍的
这里选择第一种方式。

yml配置文件：

application-common.yml

wulongbo:
  mqtt:
    emqx:
      username: admin
      password: public
      #tcp://ip:port
      host-url: tcp://39.102.56.91:1883
      client-id: wulongbo${random.value}
      default-topic: wulongbo_topic
      #      default-topic: $SYS/brokers/+/clients/#
      timeout: 60
      keep-alive: 60
      # qos：{0:至多一次的传输 /1:至少分发一次，可重复 /2:只分发一次，不可重复}
      qos: 1
      version: 4

注：我自身的EMQX 是启用了Mysql认证登录的，并且关闭了匿名登录的哈，所以需要正确的用户名和密码

springboot_emqx_publish

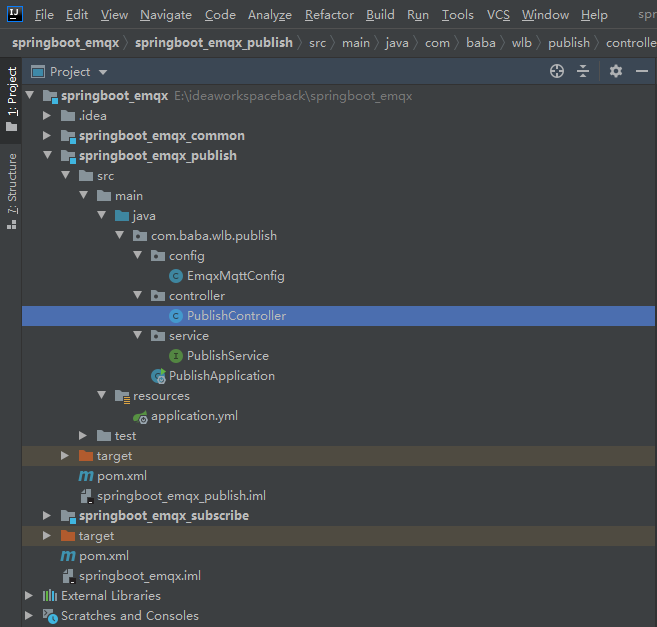

在该模块下新建如下package包

config类：

EmqxMqttConfig.java

package com.baba.wlb.publish.config;

/**
 * @Author wulongbo
 * @Date 2020/12/29 11:38
 * @Version 1.0
 */

import com.baba.wlb.share.common.Constants;
import com.baba.wlb.share.properties.EmqxMqttProperties;
import lombok.extern.slf4j.Slf4j;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.IntegrationComponentScan;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;
import org.springframework.integration.mqtt.core.MqttPahoClientFactory;
import org.springframework.integration.mqtt.outbound.MqttPahoMessageHandler;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.MessageHandler;

import javax.annotation.Resource;

/**
 * EMQX配置工具类
 */

@Configuration
@IntegrationComponentScan //消息扫描件
@Slf4j
public class EmqxMqttConfig {

    @Resource
    private EmqxMqttProperties emqxMqttProperties;

    /**
     * MQTT的连接
     */
    @Bean
    public MqttConnectOptions getMqttConnectOptions() {
        // 设置相关的属性
        MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();
        mqttConnectOptions.setUserName(emqxMqttProperties.getUsername());
        mqttConnectOptions.setPassword(emqxMqttProperties.getPassword().toCharArray());
        mqttConnectOptions.setServerURIs(new String[]{emqxMqttProperties.getHostUrl()});
        // 心跳
        mqttConnectOptions.setKeepAliveInterval(emqxMqttProperties.getKeepAlive());
        mqttConnectOptions.setMqttVersion(emqxMqttProperties.getVersion());
        mqttConnectOptions.setConnectionTimeout(emqxMqttProperties.getTimeout());
        // 保留/清空曾经连接的客户端信息
        mqttConnectOptions.setCleanSession(false);
        // qos
        String playload = "设备已断开连接";
        // 遗嘱消息
        mqttConnectOptions.setWill("last_topic", playload.getBytes(), emqxMqttProperties.getQos(), false);
        return mqttConnectOptions;
    }

    /**
     * paho factory,mqtt自定义的连接放入factory工厂中
     */
    @Bean
    public MqttPahoClientFactory getMqttPahoClientFactory() {
        DefaultMqttPahoClientFactory defaultMqttPahoClientFactory = new DefaultMqttPahoClientFactory();
        defaultMqttPahoClientFactory.setConnectionOptions(getMqttConnectOptions());
        return defaultMqttPahoClientFactory;
    }

    /**
     * 开启连接通道
     */
    @Bean(name = Constants.MQTT_PUBLISH_CHANNEL)
    public MessageChannel getMqttPublishMessageChannel() {
        DirectChannel directChannel = new DirectChannel();
        return directChannel;
    }


//    /**
//     * 开启连接通道
//     */
//    @Bean(name = Constants.MQTT_SUBSCRIBE_CHANNEL)
//    public MessageChannel getMqttSubscribeMessageChannel() {
//        DirectChannel directChannel = new DirectChannel();
//        return directChannel;
//    }
//
//
//
//    /**
//     * 监听topic.订阅者，消费者
//     */
//    @Bean
//    public MessageProducer inbound() {
//        MqttPahoMessageDrivenChannelAdapter mqttPahoMessageDrivenChannelAdapter = new MqttPahoMessageDrivenChannelAdapter(
//                emqxMqttProperties.getClientId() + "_wlb", getMqttPahoClientFactory(), emqxMqttProperties.getDefaultTopic().split(",")
//        );
//        mqttPahoMessageDrivenChannelAdapter.setDisconnectCompletionTimeout(emqxMqttProperties.getTimeout());
//        mqttPahoMessageDrivenChannelAdapter.setConverter(new DefaultPahoMessageConverter());
//        mqttPahoMessageDrivenChannelAdapter.setQos(emqxMqttProperties.getQos());
//        mqttPahoMessageDrivenChannelAdapter.setOutputChannel(getMqttPublishMessageChannel());
//        return mqttPahoMessageDrivenChannelAdapter;
//    }

    /**
     * 订阅者，消费者
     */
    @Bean
    @ServiceActivator(inputChannel = Constants.MQTT_PUBLISH_CHANNEL)
    public MessageHandler getMessageHandler() {
        MqttPahoMessageHandler mqttPahoMessageHandler = new MqttPahoMessageHandler(emqxMqttProperties.getClientId(),getMqttPahoClientFactory());
        mqttPahoMessageHandler.setAsync(true);
        mqttPahoMessageHandler.setDefaultQos(emqxMqttProperties.getQos());
        mqttPahoMessageHandler.setDefaultTopic(emqxMqttProperties.getDefaultTopic());
        return mqttPahoMessageHandler;
    }

}

controller类：

PublishController.java

package com.baba.wlb.publish.controller;


import com.baba.wlb.publish.service.PublishService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Author wulongbo
 * @Date 2020/12/29 13:58
 * @Version 1.0
 */

/**
 * 发送消息的Controller
 */

@RestController
@RequestMapping("/publish")
public class PublishController {

    /**
     * 注入发布者的service服务
     */
    @Autowired
    private PublishService publishService;

    /**
     * 发送消息
     */
    @RequestMapping("/emqxPublish")
    public String emqxPublish(String data,String topic){
        publishService.sendToMqtt(data,topic);
        return "success";
    }
}

service:

PublishService.java

package com.baba.wlb.publish.service;

import com.baba.wlb.share.common.Constants;
import org.springframework.integration.annotation.MessagingGateway;
import org.springframework.integration.mqtt.support.MqttHeaders;
import org.springframework.messaging.handler.annotation.Header;
import org.springframework.stereotype.Component;

/**
 * @Author wulongbo
 * @Date 2020/12/29 14:00
 * @Version 1.0
 */

@MessagingGateway(defaultRequestChannel = Constants.MQTT_PUBLISH_CHANNEL)
@Component
public interface PublishService {
    void sendToMqtt(String data, @Header(MqttHeaders.TOPIC) String topic);

    void sendToMqtt(String data);

    void sendToMqtt(@Header(MqttHeaders.TOPIC)String topic, int qos, String data);
}

注：必须加@Header(MqttHeaders.TOPIC)注解哈

application启动类：

PublishApplication.java

package com.baba.wlb.publish;

import com.baba.wlb.share.properties.EmqxMqttProperties;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.EnableConfigurationProperties;

/**
 * @Author wulongbo
 * @Date 2020/12/29 14:04
 * @Version 1.0
 */

/**
 * emqx 发布者启动程序
 */
@SpringBootApplication
@EnableConfigurationProperties({EmqxMqttProperties.class})
public class PublishApplication {

    public static void main(String[] args) {
        SpringApplication.run(PublishApplication.class,args);
    }
}

注：须加入@EnableConfigurationProperties，才能加载到配置文件

yml文件：

application.yml

server:
  port: 1001

#spring:
#  profiles:
#    active: common

注：这里我们因为把publish模块设置成为了主类，所以可引入common yml,也可以不引入

springboot_emqx_subscribe

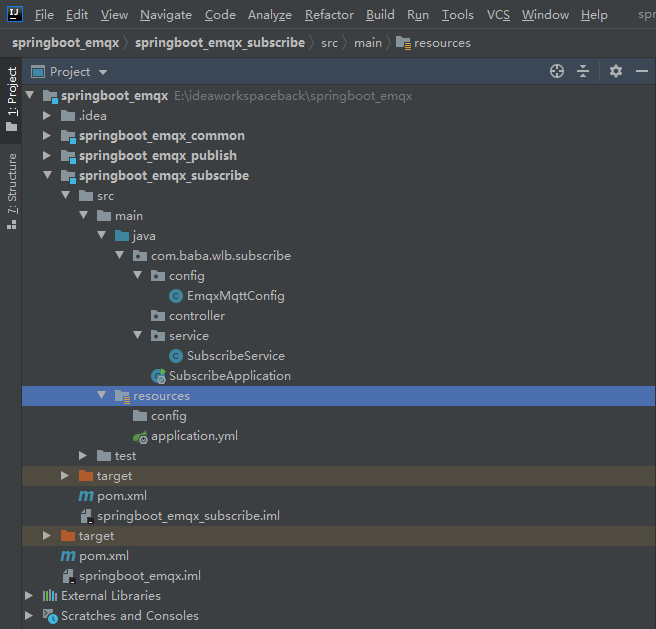

在该模块下新建如下package包

config类：

EmqxMqttConfig.java

package com.baba.wlb.subscribe.config;

/**
 * @Author wulongbo
 * @Date 2020/12/29 11:38
 * @Version 1.0
 */

import com.baba.wlb.share.common.Constants;
import com.baba.wlb.share.properties.EmqxMqttProperties;
import lombok.extern.slf4j.Slf4j;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.IntegrationComponentScan;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.core.MessageProducer;
import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;
import org.springframework.integration.mqtt.core.MqttPahoClientFactory;
import org.springframework.integration.mqtt.inbound.MqttPahoMessageDrivenChannelAdapter;
import org.springframework.integration.mqtt.outbound.MqttPahoMessageHandler;
import org.springframework.integration.mqtt.support.DefaultPahoMessageConverter;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.MessageHandler;

import javax.annotation.Resource;

/**
 * EMQX配置工具类
 */

@Configuration
@IntegrationComponentScan //消息扫描件
@Slf4j
public class EmqxMqttConfig {

    @Resource
    private EmqxMqttProperties emqxMqttProperties;

    /**
     * MQTT的连接
     */
    @Bean
    public MqttConnectOptions getMqttConnectOptions() {
        // 设置相关的属性
        MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();
        mqttConnectOptions.setUserName(emqxMqttProperties.getUsername());
        mqttConnectOptions.setPassword(emqxMqttProperties.getPassword().toCharArray());
        mqttConnectOptions.setServerURIs(new String[]{emqxMqttProperties.getHostUrl()});
        // 心跳
        mqttConnectOptions.setKeepAliveInterval(emqxMqttProperties.getKeepAlive());
        mqttConnectOptions.setMqttVersion(emqxMqttProperties.getVersion());
        mqttConnectOptions.setConnectionTimeout(emqxMqttProperties.getTimeout());
        // 保留/清空曾经连接的客户端信息
        mqttConnectOptions.setCleanSession(false);
        // qos
        String playload = "设备已断开连接";
        // 遗嘱消息
        mqttConnectOptions.setWill("last_topic", playload.getBytes(), emqxMqttProperties.getQos(), false);
        return mqttConnectOptions;
    }

    /**
     * paho factory,mqtt自定义的连接放入factory工厂中
     */
    @Bean
    public MqttPahoClientFactory getMqttPahoClientFactory() {
        DefaultMqttPahoClientFactory defaultMqttPahoClientFactory = new DefaultMqttPahoClientFactory();
        defaultMqttPahoClientFactory.setConnectionOptions(getMqttConnectOptions());
        return defaultMqttPahoClientFactory;
    }

//    /**
//     * 开启连接通道
//     */
//    @Bean(name = Constants.MQTT_PUBLISH_CHANNEL)
//    public MessageChannel getMqttPublishMessageChannel() {
//        DirectChannel directChannel = new DirectChannel();
//        return directChannel;
//    }


    /**
     * 开启连接通道
     */
    @Bean(name = Constants.MQTT_SUBSCRIBE_CHANNEL)
    public MessageChannel getMqttSubscribeMessageChannel() {
        DirectChannel directChannel = new DirectChannel();
        return directChannel;
    }



    /**
     * 监听topic.订阅者，消费者
     */
    @Bean
    public MessageProducer inbound() {
        MqttPahoMessageDrivenChannelAdapter mqttPahoMessageDrivenChannelAdapter = new MqttPahoMessageDrivenChannelAdapter(
                emqxMqttProperties.getClientId() + "_wlb", getMqttPahoClientFactory(), emqxMqttProperties.getDefaultTopic().split(",")
        );
        mqttPahoMessageDrivenChannelAdapter.setDisconnectCompletionTimeout(emqxMqttProperties.getTimeout());
        mqttPahoMessageDrivenChannelAdapter.setConverter(new DefaultPahoMessageConverter());
        mqttPahoMessageDrivenChannelAdapter.setQos(emqxMqttProperties.getQos());
        mqttPahoMessageDrivenChannelAdapter.setOutputChannel(getMqttSubscribeMessageChannel());
        return mqttPahoMessageDrivenChannelAdapter;
    }

    /**
     * 发布者，生产者
     */
    @Bean
    @ServiceActivator(inputChannel = Constants.MQTT_SUBSCRIBE_CHANNEL)
    public MessageHandler getMessageHandler() {
        MqttPahoMessageHandler mqttPahoMessageHandler = new MqttPahoMessageHandler(emqxMqttProperties.getClientId(),getMqttPahoClientFactory());
        mqttPahoMessageHandler.setAsync(true);
        mqttPahoMessageHandler.setDefaultQos(emqxMqttProperties.getQos());
        mqttPahoMessageHandler.setDefaultTopic(emqxMqttProperties.getDefaultTopic());
        return mqttPahoMessageHandler;
    }

}

service业务类：

SubscribeService.java

package com.baba.wlb.subscribe.service;

import com.baba.wlb.share.common.Constants;
import org.springframework.context.annotation.Bean;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHandler;
import org.springframework.messaging.MessagingException;
import org.springframework.stereotype.Service;

/**
 * @Author wulongbo
 * @Date 2020/12/29 14:11
 * @Version 1.0
 */

/**
 * 订阅者
 */
@Service
public class SubscribeService {

    @Bean
    @ServiceActivator(inputChannel = Constants.MQTT_SUBSCRIBE_CHANNEL)
    public MessageHandler messageHandler() {
        MessageHandler messageHandler = new MessageHandler() {
            @Override
            public void handleMessage(Message> message) throws MessagingException {
                System.out.println("订阅者订阅消息头是：" + message.getHeaders());
                System.out.println("订阅者订阅消息主体是：" + message.getPayload());
            }
        };
        return messageHandler;
    }
}

注：我们把MessageHandler放入了专门的server做业务处理，其实放config类也是OK的

application启动类：

SubscribeApplication.java

package com.baba.wlb.subscribe;

/**
 * @Author wulongbo
 * @Date 2020/12/29 14:16
 * @Version 1.0
 */

import com.baba.wlb.share.properties.EmqxMqttProperties;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.EnableConfigurationProperties;

/**
 * 订阅者启动类
 */
@SpringBootApplication
@EnableConfigurationProperties({EmqxMqttProperties.class})
public class SubscribeApplication {
    public static void main(String[] args) {
        SpringApplication.run(SubscribeApplication.class,args);
    }
}

yml配置文件：

application.yml

server:
  port: 1002

spring:
  profiles:
    include: common

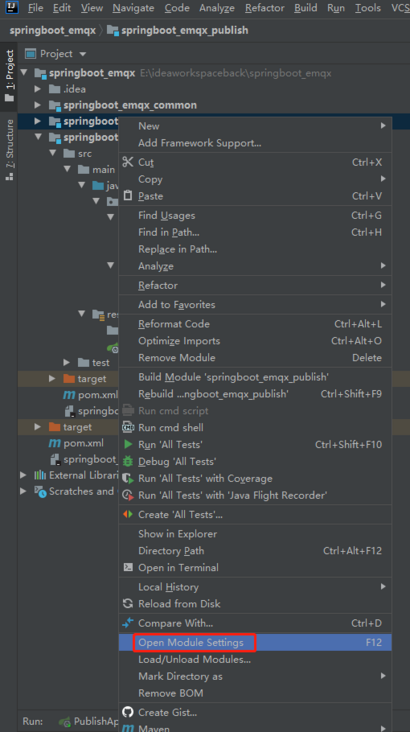

注：当然我们上面的publish和subscribe模块都是依赖于common模块的我们需要在各个模块上右击--Open Model Settings

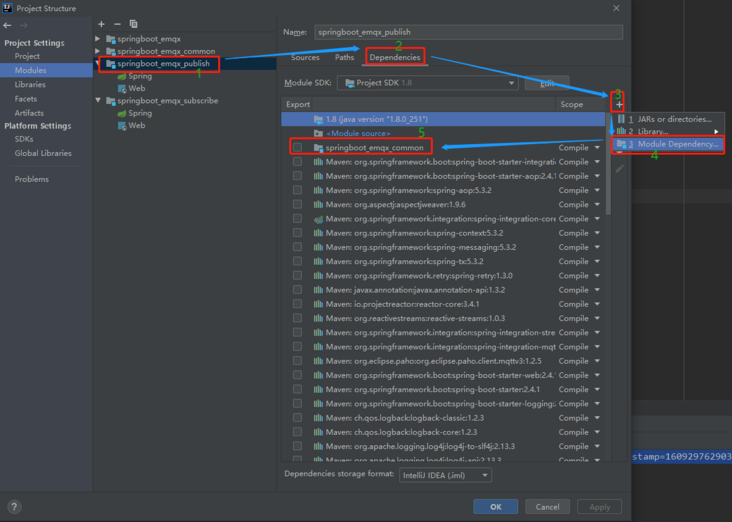

并按下图依次来添加模块之间的依赖关系

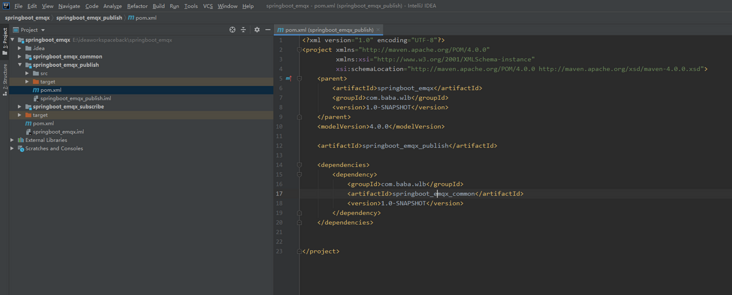

最后，我们在分别在 publish和subscribe模块的pom文件中引入common依赖就Ok了

    com.baba.wlbspringboot_emqx_common1.0-SNAPSHOT

至此，我们多模块用Gateway绑定的方式就集成好了MQTT消息推送和消息订阅功能。

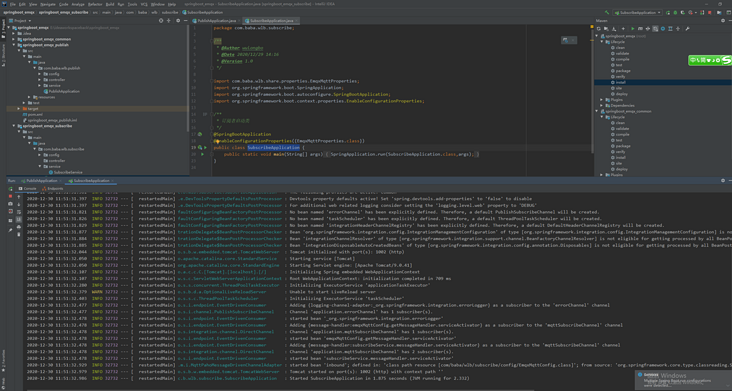

启动项目

分别启动

PublishApplication

和

SubscribeApplication

端口分别为：1001,1002

PostMan测试

打开postman:发起Get请求

localhost:1001/publish/emqxPublish?topic=wulongbo_topic&data=我是一条消息

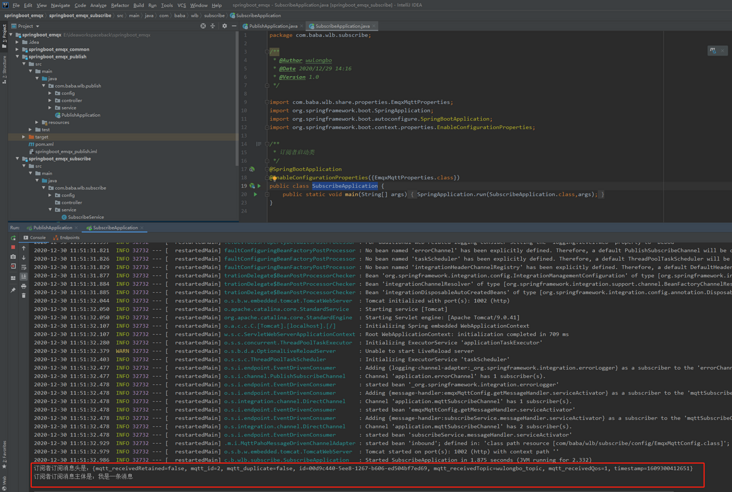

可以看到我们订阅者订阅到了这条消息:

至于service业务模块对消息的处理：具体是根据主题来筛选，还是根据playload来区分，看具体的业务场景和设计需要。当然EMQX 有更解耦的方式就是规则引擎来对各个事件响应动作，也有

HTTP API

供我们调用，读者灵活运用即可。

理论要掌握，实操不能落！以上关于《Gateway绑定MQTT实现发布订阅》的详细介绍，大家都掌握了吧！如果想要继续提升自己的能力，那么就来关注golang学习网公众号吧！
